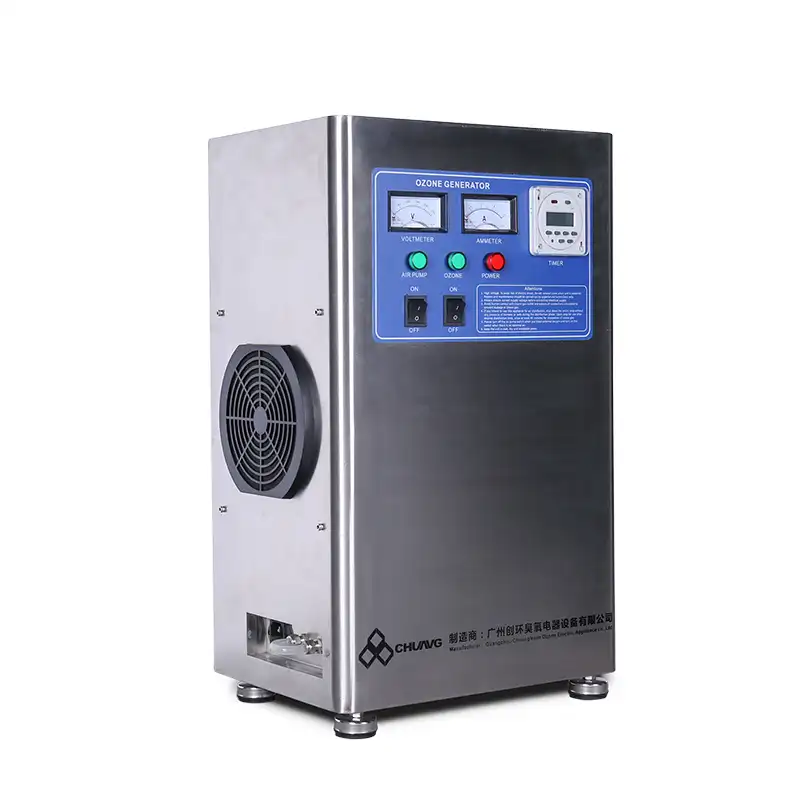

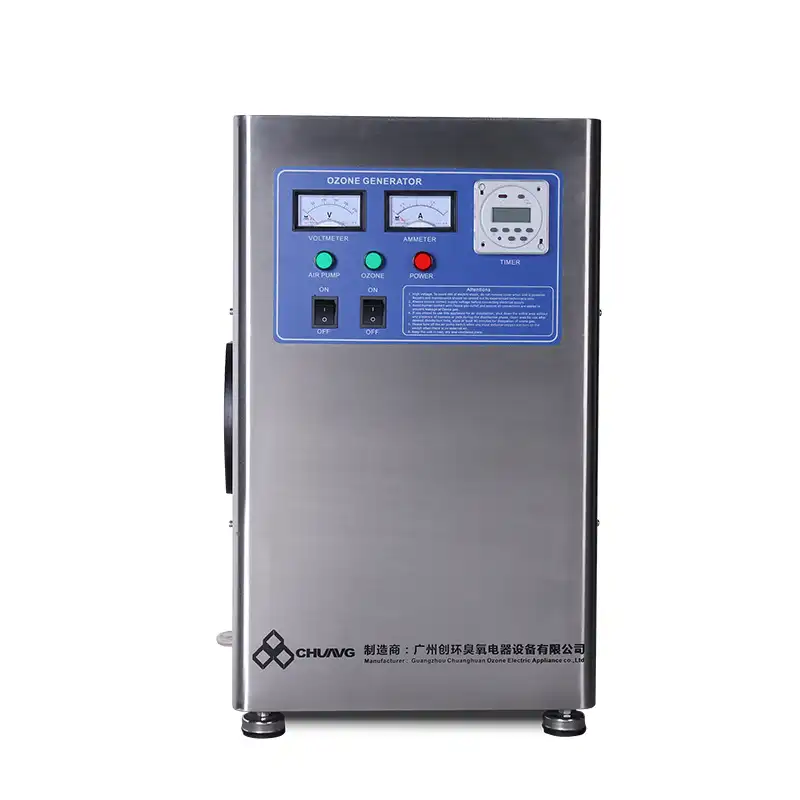

The 3-80g/h Air Source Ozone Generator is designed for multi-scenario environmental purification, utilizing advanced non-thermal plasma technology to precisely adjust ozone output between 3-80 grams per hour (g/h). Its air-driven system eliminates the need for external oxygen sources, making it suitable for applications within 200 cubic meters including swimming pool disinfection, SPA water quality maintenance, air purification in food processing workshops.
Features
1、Stainless steel vertical movable.
2、Optional automatic heating and drying system.
3、Using air as raw material or external oxygen dual-purpose type.
4、Adopting high-tech double air-cooled ceramic tube unit, high-frequency power supply, stable ozone output and long life.
5、Compact structure, small footprint, the equipment can be freely placed or moved according to actual conditions.
6、Single-cycle or double-cycle time relay.
Components:
| Ozone generator housing | Stainless steel, resistant to ozone corrosion. |
| Air supply system | Oil-free air compressor |
| Air treatment system (optional) | Automatic heating and drying system |
| Ozone generator unit | Double air cooling inside and outside, imported high-purity quartz tube, high-purity imported quartz tube, ozone concentration can reach up to 90mg/L, 316L stainless steel inner electrode and fasteners, polytetrafluoroethylene (Teflon), high-purity silicone rubber material application, make it anti-oxidation and corrosion-resistant, ensure years of trouble-free application. |
| Ozone dedicated power supply | High-frequency inverter circuit, power device uses IGBT, working frequency 8-12KHZ, high-frequency step-up transformer, working voltage: 3-5KV: ferrite core, high-temperature multi-strand high-frequency wire coil wire. |
| Cooling system | The whole machine adopts air cooling |
| Air circuit | The inlet and outlet air pipelines are made of polytetrafluoroethylene (Teflon) material |

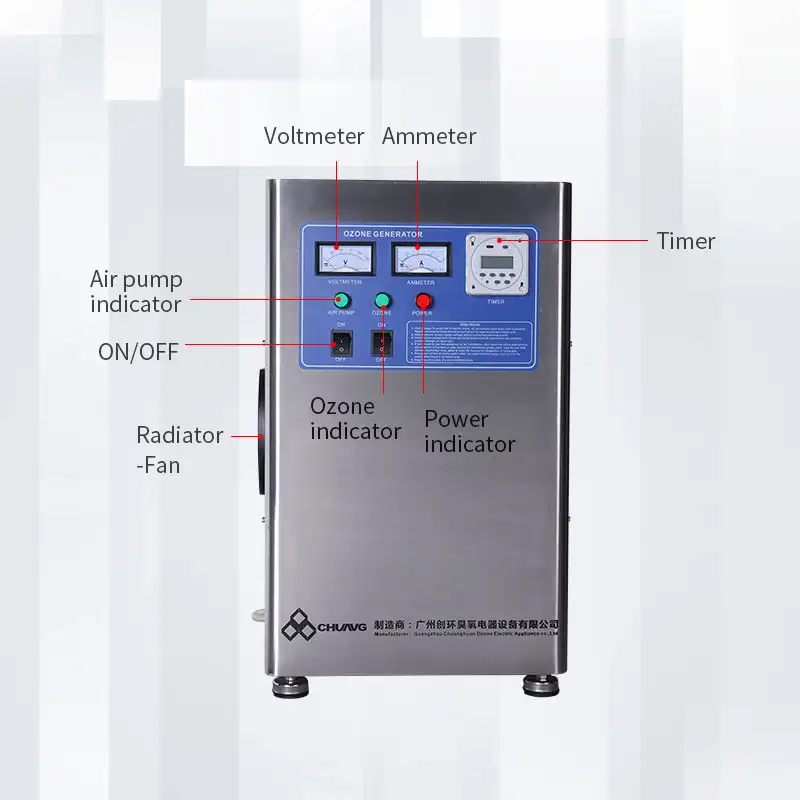

| Instruments and accessories | Voltmeter, ammeter, timer, power switch, gas source switch, work indication, power indication, etc. |
Equipment parameters:
| Model | Ozone output g/h |
Ozone concentration mg/L | Power W |
Power supply V/Hz |
Cooling way | Dimensions cm | Net weight kg |

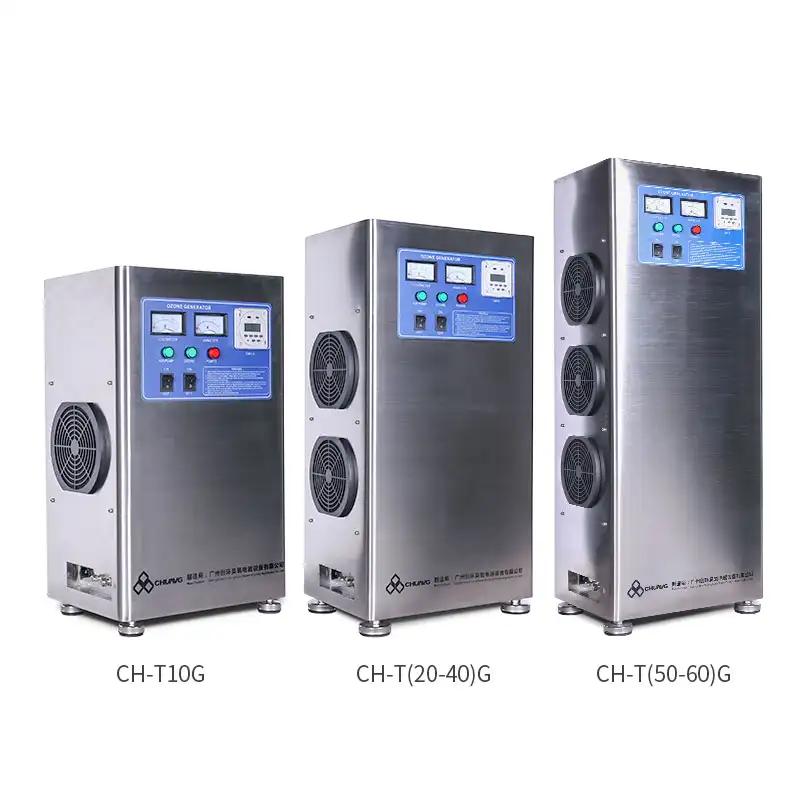

| CH-T3G | 3 | 10-30 | 120 | 220/50 | Air Cooling | 36×26×61 | 10.5 |
| CH-T6G | 6 | 10-30 | 140 | 220/50 | Air Cooling | 36×26×61 | 11 |
| CH-T7G | 7 | 10-30 | 150 | 220/50 | Air Cooling | 36×26×61 | 11 |
| CH-T10G | 10 | 10-30 | 180 | 220/50 | Air Cooling | 36×26×61 | 12 |
| CH-T12G | 12 | 10-30 | 240 | 220/50 | Air Cooling | 36×26×61 | 13 |
| CH-T15G | 15 | 10-30 | 300 | 220/50 | Air Cooling | 36×26×61 | 15 |
| CH-T18G | 18 | 10-30 | 500 | 220/50 | Air Cooling | 40×28×80 | 20 |
| CH-T20G | 20 | 10-30 | 600 | 220/50 | Air Cooling | 40×28×80 | 21 |
| CH-T24G | 24 | 10-30 | 690 | 220/50 | Air Cooling | 40×28×80 | 23 |
| CH-T30G | 30 | 10-30 | 1100 | 220/50 | Air Cooling | 40×28×101 | 32 |
| CH-T36G | 30 | 10-30 | 1200 | 220/50 | Air Cooling | 40×28×101 | 35 |
| CH-T40G | 40 | 10-30 | 1320 | 220/50 | Air Cooling | 40×28×130 | 41 |
| CH-T50G | 50 | 10-30 | 1760 | 220/50 | Air Cooling | 40×52×104 | 53 |
| CH-T60G | 60 | 10-30 | 1870 | 220/50 | Air Cooling | 40×52×104 | 54 |
| CH-T70G | 70 | 10-30 | 1950 | 220/50 | Air Cooling | 40×52×104 | 56 |
| CH-T80G | 80 | 10-30 | 2180 | 220/50 | Air Cooling | 40×52×104 | 58 |
